NAUTEX MARINE

Marine standard
Anti Corrosion
Stainless steel 316L
2MP-8MP Resolution
Thermal & Dual Spectrum
Wiper & Washer Options
-40 to +60 deg
Various fixed and Zoom Lens configurations
Approved rack system, NVR , Switch , Rugged Monitor etc….

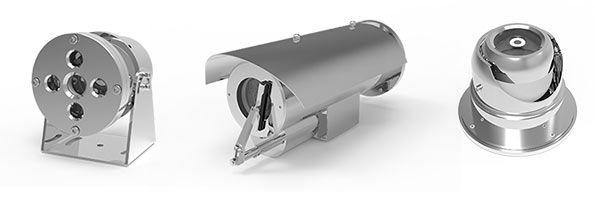

Marine - Anti Corrosion Cameras – SS316 Solutions – Fixed & PTZ

Super Wide-angle Fixed View Marine Camera

Marine Super Wide View Camera
Stainless Steel 316L Enclosure
IP68 Ingress Protection
Black light Level
4MP @2560×1440 Resolutions
Fixed lens 1.8mm /2.1mm /2.5mm、2.8mm (2.8mm with Black Level)
PoE/DC12V Power Supply
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

Marine Grade Fixed Dome Camera

Marine Fixed Dome Camera
Stainless Steel 316L Enclosure
IP68 ingress protection
IR distance 30meters
1080P / 3.6 Fixed lens
PoE/DC12V Power Supply
Comply with EN62676-1-1-2014 ( identical to IEC62676-1-1-2013)

Marine Grade Fixed Bullet Camera

Marine Fixed bullet Camera
Stainless Steel 316L Enclosure
IP68 ingress protection
IR distance 15meters
4MP @2560×1440 Resolution / 2.8mm/4mm -
Fixed lens
PoE/DC12V Power Supply
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

Marine Grade Mini PTZ – Dome Camera

Marine PTZ Mini Dome Camera
Stainless Steel 316L Enclosure
IP68 ingress Protection
IR Distance 40meters
Support Pan & Tilt Functions
5MP @2560x1920 /2.7-13.5mm Focal Length
5XOptical Zoom
PoE/DC12V Power Supply
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

2mp- Marine Grade Bullet Type IR Camera With Wiper (22x Zoom)

2MP 22X 316L Marine Bullet IR IP Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
Resolution 2MP
5.2-114.4mm Vari-focal lens
22X Optical Zoom,16x Digital Zoom
IR Range up to 100meters (300meters is optional)
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
- Support image stabilization
DC12V Power Supply (Standard)
AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676- 1-1-2013)

4MP - MARINE GRADE BULLET TYPE IR CAMERA WITH WIPER (18X ZOOM)

4MP 18X 316LMarine Fixed IP Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
4MP @2560×1440 Resolution
5.5-99mm Vari-focal lens
18X Optical Zoom,16x Digital Zoom
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
DC12V Power Supply (Standard)
AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

2MP - MARINE GRADE BULLET TYPE IR CAMERA WITH WIPER (18X ZOMM)

2MP 18X 316L Marine Bullet IP Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
2MP@ 1080P Resolution
5.5-99mm Vari-focal lens
18X Optical Zoom,16x Digital Zoom
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
DC12V Power Supply (Standard)
AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

4MP - MARINE GRADE BULLET TYPE IR CAMERA WITH WIPER (22X ZOOM)

4MP 22X 316L Marine Bullet IR IP Camera
Stainless steel 316L Enclosure
Ingress protection lP68
4MP @2560×1440 Resolution
5.2-114.4mm Vari-focal lens
22X Optical Zoom,16x Digital Zoom
IR Range up to 100meters (300meters is optional)
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
- Support image stabilization
DC12V Power Supply (Standard)
AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676- 1-1-2013)

4MP - Marine Grade IR PTZ camera with Wiper - (33X Zoom)

4MP 33X 316L Marine PTZ IR Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
4MP @2560×1440 Resolution
4.5-148.5mm Vari-focal lens
33X Optical Zoom,16x Digital Zoom
Pan 0-360° ，Tilt -90° ~+90°
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
- Support image stabilization
Built-in smart heater &fan
AC100V -240V / DC24V/AC24V Power supply (Standard)
POE++ Power Supply (Optional with additional cost; must be used with POE++ switch)
Comply with EN62676-1-1-2014 (It is identical to IEC62676- 1-1-2013)

4MP - Marine Grade IR PTZ camera - WDR - with Wiper - (33X Zoom)

4MP 33X Marine IR PTZ Starlight WDR IP Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
4MP @2560×1440 Resolution Starlight Level
4.5-148.5mm Vari-focal lens
33X Optical Zoom,16x Digital Zoom
Pan 0-360° ，Tilt -90° ~+90°
Laser Distance 500meters
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
- Support image stabilization
Built-in smart heater &fan
AC100V -240V / DC24V/AC24V Power supply (Standard)
POE++ Power Supply (Optional with additional cost; must be used with POE++ switch)
Comply with EN62676-1-1-2014 (It is identical to IEC62676- 1-1-2013)

MARINE – THERMAL IMAGING TYPE ANTI CORROSION CAMERAS

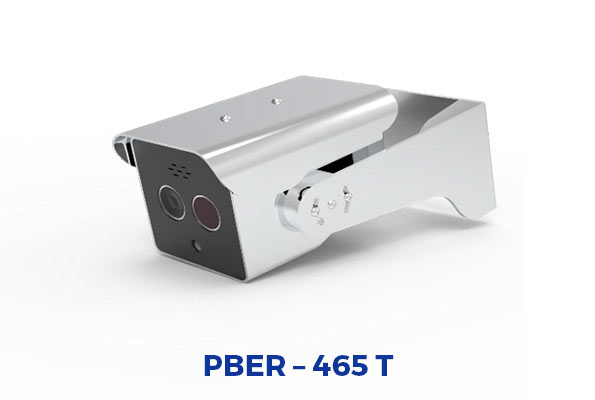

5MP - MARINE – DUAL SPECTURM – BULLET CAMERA – (2.8mm Lens Visible)

Marine Dual -Spectrum Bullet Camera
Stainless steel 316L polished enclosure
IP67 ingress protection
Thermal camera
Resolution 640*512
Standard Fixed lens 9.1mm
Visible Camera
Resolution 5MP ,Lens 2.8mm
DC12/PoE power supply
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

4MP- MARINE – DUAL SPECTURM – BULLET CAMERA – 10X Optical Zoom ( Visible )

Marine Dual -Spectrum Bullet Camera
Stainless steel 316L polished enclosure
IP67 ingress protection
Thermal camera
Resolution 640*512
Standard Fixed lens 9.1mm
Visible Camera
Resolution 4MP ,10x optical zoom
DC12/PoE power supply
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

4MP- MARINE – DUAL SPECTURM PTZ CAMERA – 20X Optical Zoom ( Visible )

Marine Dual-spectrum PTZ Network Camera
Aluminum enclosure with corrosion proof powder coating
IP66 ingress protection
Pan&tilt function
Thermal camera :
Resolution 640*512
Standard Fixed lens 19mm
Visible Camera
Resolution 4MP ,20x optical zoom
DC24V power supply
Standard EN62676
Weight 4.5KG
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

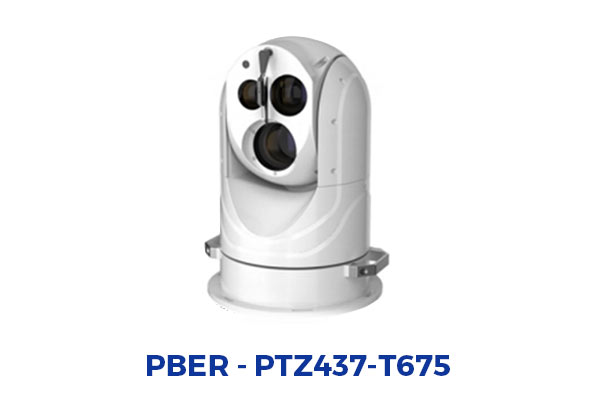

4MP- MARINE – TRIPLE SPECTURM PTZ CAMERA – 37X Optical Zoom ( Visible )

Marine Triple specturm Network Speed Dome PTZ Camera
Aluminium enclosure with corrosion proof powder coating
IP67 ingress protection
Support pan tilt function
Support 3D positioning
Support Gyro stabilization
Support Anti-fog function
Built-in 1.5KM laser light
thermal camera :
Resolution 640*512
Standard Fixed lens 75mm
Visible Camera
Resolution 4MP ,37x optical zoom
DC24V power supply
Standard EN62676
Weight 16KG
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1- 1-2013)

MARINE – LOW TEMPERATURE CAMERA OPTION C/W HEATER & FAN

MARINE GRADE - LOW TEMPERATURE 4 MP – 18X Zoom

4MP 18X 316L Marine Fixed IP Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
Resolution 4MP
5.5-99mm Vari-focal lens
18X Optical Zoom,16x Digital Zoom
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
Built-in smart heater&fan
AC/DC 24V Power Supply (Standard) AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

MARINE GRADE - LOW TEMPERATURE 2 MP – 18X Zoom

2MP 18X 316L Marine Bullet IP Camera with wiper
Stainless steel 316L Enclosure
Ingress protection lP68
Resolution 2MP
5.5-99mm Vari-focal lens
18X Optical Zoom,16x Digital Zoom
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
- Built-in smart heater&fan
AC/DC 24V Power Supply (Standard) - AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)

MARINE GRADE - LOW TEMPERATURE 4 MP – 22X Zoom

4MP 22X 316L Marine Bullet IR IP Camera
Stainless steel 316L Enclosure
Ingress protection lP68
Resolution 2MP
5.2-114.4mm Vari-focal lens
22X Optical Zoom,16x Digital Zoom
IR Range up to 100meters (300meters is optional)
Special characters
- Starlight Level
- 120db WDR
- Anti-fog
- Support 3D positioning
Support image stabilization
Built-in smart heater&fan
AC/DC 24V Power Supply (Standard)
AC110V-AC220V / POE+ (Optional with additional cost )
Comply with EN62676-1-1-2014 (It is identical to IEC62676-1-1-2013)
